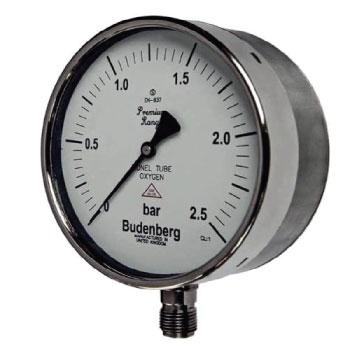

Bourdon Tube Oxygen Pressure Gauge
The Budenberg 950GP has an impressive technical specification with a wide range of standard features that make it the obvious choice for a wide range of process and engineering applications.
It embodies an all 316 Stainless Steel case and bezel construction, the 950GP incorporates a solid baffle wall and blow out back for operator protection and standard features such as IP67 environmental protection , not normally available on comparative units.
The 950GP has been specifically manufactured for use on OXYGEN and as such is cleaned for Oxygen service with no oil or grease contamination. A restrictor in the inlet is a standard feature.
contact us for pricing and availability of the Budenberg 950GP Pressure Gauge.
The Budenberg 950GP Pressure Gauge is suitable for the following applications / industries
|
Chemical
Pressure Gauge
|
Petrochemical
Pressure Gauge
|
Oil & Gas
Pressure Gauge
|
Power Generation
Pressure Gauge
|
Budenberg 950GP Specifications
| Size | 100mm (4") & 150mm (6") |
| Mounting |
Direct, Surface and Flush
|
| Case & Bezel | Rugged one-piece full Safety Pattern case to S3 standard with a solid baffle partition wall and full blow out back manufactured in 1.6mm thick, 316L stainless steel. |
| Scale Ranges |
0 to 600 mbar to 0 to 1400 bar Pressure.
Equivalent units of pressure / vacuum available. Single and dual scales are also available.
|
| Pressure Element |
Monel
|
| Overload Protection |
Units withstand overload pressure upto 130% of FSD. Overload & vacuum stops are fitted on the movement.
|
| Pressure Connection in 316 Stainless Steel |
1/4", 3/8" & 1/2" BSP
1/2"NPT
Other connections available.
|
| Accuracy Class |
CL:1 1.0% of FSD as defined in EN837-1
Option: 0.5% of FSD as defined in EN837-1
|
| Temperature |
Operating: -20 to +90°c
Storage: -40 to +100°c
Options for lower or higher operating temperatures, please contact our office
|
| Temperature Effect | Variation in indication caused by temperature shall not exceed +0.04 x (t2 - t1)% of the span where: t1 is the reference ambient temperature in degrees celsius / t2 is the ambient temperature in degrees celsius |
| Environmental | IP67 as defined in EN 60 529 |
| Certification & Traceability |
Individually calibrated with a unique serial number printed on the dial.
Certificate of Conformity traceable to National Standards is supplied
Available Certification: BS EN 10204 3.1B Material Certification
Point to Point Test Certificate
All instruments are individually calibrated and have a unique Serial Number printed on the dial.
|
| Safety | All units are manufactured to comply with EN837-1, S3 Specification and other regulatory standards including PED. |
Classic 950GP Series Dial Specifications
| Size | 100mm (4") & 150mm (6") |
| Dial |
White Anodised Aluminium marked in black finish
Marked "Oxygen" and "Use no Oil" in red triangle
Single or Dual Scale available
|
| Pointer |
Aluminium coloured Black
Options: Micrometer Adjustable Pointer
|
| Movement |
Stainless Steel Construction
Options: Viscous Damped movement to overcome the effects of minor pressure pulsations
|
| Window |
3mm laminated Safety Glass (standard)
Option: Acrylic Plastic Window
|
950GP Pressure Gauge Specification Sheet Download
To view all the information on the Budenberg 950GP Pressure Gauge you can download the data sheet here
