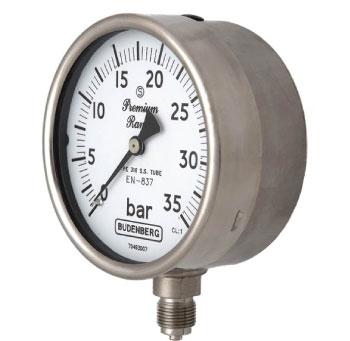

966GP - Bourdon Tube Safety Pattern Budenberg Pressure Gauge

966GP Bourdon Tube Pressure Gauge Budenberg Australia

Bourdon Tube Pressure Gauge - Safety Pattern Construction

Budenberg's 966GP impressive technical specifications and wide range of standard features make this PREMIUM pressure gauge the obvious choice for a wide range of process and engineering applications.

Embodying an all 316 Stainless Steel construction, the 966GP safety pattery pressure gauges incorporates a solid baffle wall and blow out back for operator protection and standard features such as IP67 environmental protection , not normally available on comparative units.

An extensive choice of options can be fitted to any standard unit whilst fully customised units can be manufactured to suit any customer's requirements.

If customers requirements include meeting NACE-01-075 then monel wetted parts, can be provided for more information and specifications refer to 966MGP.



   contact us  for pricing and availability of the Budenberg 966GP Pressure Gauge.



The Budenberg 966GP Pressure Gauge is suitable for the following applications / industries

Oil & Gas Pressure Gauges Budenberg Australia

Oil & Gas
Pressure Gauge

Chemical Pressure Gauges Budenberg Australia

Chemical
Pressure Gauge

Petrochemical Pressure Gauges Budenberg Australia

Petrochemical
Pressure Gauge

Power Generation Pressure Gauges Budenberg Australia

Power Generation
Pressure Gauge

Budenberg Water & Waste Water Pressure Gauges

Water & Waste Water
Pressure Gauge

Refrigerant Pressure Gauges Budenberg Australia

Refrigeration
Pressure Gauge



Budenberg 966GP Specifications

Size 100mm (4") & 150mm (6")
Mounting
Direct, Surface and Flush
Case & Bezel Rugged one-piece full Safety Pattern case to S3 standard with a solid baffle partition wall and full blow out back manufactured in 1.6, thick 316L stainless steel.
Scale Ranges
0 to 600 mbar to 0 to 1400 bar Pressure.
Equivalent units of pressure / vacuum available. Single and dual scales are also available.
Pressure Element
≤80 Bar – 316 Stainless Steel Bourdon Tube
≥81 Bar - 316 Stainless Steel Coil
Overload Protection
Units withstand overload pressure upto 130% of FSD. Overload & vacuum stops are fitted on the movement.
Pressure Connection in 316 Stainless Steel
3/8" & 1/2" BSP
1/2"NPT
Other connections available.
Accuracy
CL:1 1.0% of FSD as defined in EN837-1
 Option: 0.5% of FSD as defined in EN837-1
Temperature
Operating: -20 to +90°c
Storage: -40 to +100°c
Options for lower or higher operating temperatures, please contact our office
Temperature Effect Variation in indication caused by temperature shall not exceed +0.04 x (t2 - t1)% of the span where: t1 is the reference ambient temperature in degrees celsius / t2 is the ambient temperature in degrees celsius
Environmental IP67 as defined in EN 60 529
Certification
Individually calibrated with a unique serial number printed on the dial.
Certificate of Conformity.
Available Certification: BS EN 10204 3.1B Material Certification Point by Point Test Certificate
Traceability All instruments are individually calibrated and have a unique Serial Number printed on the dial.
Safety All units are manufactured to comply with EN837-1, S3 Specification and other regulatory standards including PED.





Classic 736 Series Dial Specifications

Size 100mm (4") & 150mm (6")
Dial
White Anodised Aluminium marked in black finish
Single or Dual Scale
Pointer
Stainless Steel coloured black
Options: Micrometer Adjustable Pointer
Movement
Stainless Steel Construction
Options: Viscous Damped movement to overcome the effects of minor pressure pulsations
Window
3mm laminated Safety Glass (standard)
Option: Acrylic Plastic Window


966GP Pressure Gauge Specification Sheet Download

To view all the information on the Budenberg 966GP - Safety Pattern Budenberg Pressure Gauge you can download the data sheet here
