CFN Diaphragm Seal Gauge

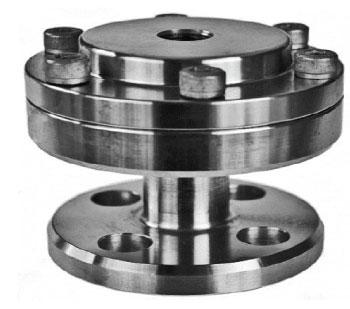

CFN Diaphragm Seal Budenberg AustraliaDiaphragm Seal Gauge with Clamped Construction & Flanged Connection

The Budenberg CFN is a high integrity Diaphragm Seal Gauge that has been designed to withstand the high pressures and temperatures that are normally associated with Chemical and Oil and Gas applications. The CFN has a diaphragm clamped between the upper and lower chambers thereby optimising the use of exotic materials for the wetted parts

It's unique feature is the ability to set the diaphragm to ‘lock off’ at set pressures thereby protecting the unit from major overload conditions, up to and including 400 Bar. This eliminates the need for expensive overload protection valves.

Available in a wide range of options including a choice of dial sizes, connections, materials, filling fluids and options to permit operation at temperatures in excess of 440°c.



    contact us   for pricing and availability of the Budenberg CFN Diaphragm Seal Gauge



The Budenberg CFN is suitable for the following applications / industries

Designed for continuous operation on gases or liquids where the pressure element could be become corroded or clogged by the process media. Versions are available to withstand pressure pulsations, vibrations and operation at very high temperatures.


Pressure Gauge for Oil and Gas Budenberg AustraliaOil & Gas
Pressure Gauge
Chemical Pressure Gauges Budenberg Australia
Chemical
Pressure Gauge
Petrochemical Pressure Gauge Budenberg AustraliaPetrochemical
Pressure Gauge
Waste Water Pressure Gauge Budenberg Australia
Water & Waste Water
Pressure Gauge
Food Beverage Pressure Gauge Budenberg Australia
Food & Beverage
Pressure Gauge
Pharmaceutical Pressure Gauge Budenberg Australia
Pharmaceutical
Pressure Gauge



The Budenberg CFN specifications

Size 63mm (2.5"), 100mm (4"), 150mm (6")
Accuracy Class
1.0% as defined in EN837
Pressure Range
The welded seal units is available in a range of configurations dependant on the required Dial Size and Operating Pressure range as follows:
Dial Size - 63mm / 100mm / 150mm
Seal Diameter - 69mm
Min Range - 1 Bar
Max Range - 400 Bar
Over Range Protection
All units will withstand 130% overload as standard up to 200 Bar. Optionally the diaphragm can be set to 'lock off' allowing the unit to withstand an overload up to the maximum pressure rating of the seal unit. This unique feature can be used to avoid the use and cost of additional overload protection valves.
Materials of Construction
Due to the clamped construction, all materials including the diaphragm and connection can be the same material or a combination of several.
Standard - 316L Stainless Steel
Options (CFN-R) - Hastelloy C276, Titanium, Tantalum or Monel 400.
Teflon lining is also available, with other materials available on request.
Process Connections
All standard RF Flanges from 150 to 1500# in sizes 1/2" to 3"
All standard PN10 flanges from DN15 to DN25
Other connections also available
Filling Fluids
A wide range of filling fluids are available to suit most applications including high temperature and pharmaceutical applications.
Standard Options - Mineral Oil, Silicon HT Oil, Medicinal Paraffin, Glycerine, Syltherm XLT & 400.
Inert Fluorine based fluids can be specified for oxygen and chlorine applications as well as a range of FDA approved fluids for food and pharmaceutical applications.
Temperature
Normal process operating temperature range:  -20 to +100°c
Elevated temperature operation up to 450°c can be achieved by the selection of an extended neck option and an associated high temperature filling fluid.
Pulsation Dampener The clamped design allows Budenberg to offer a snubber internally to dampen pulsations and beneficially protect the Pressure Gauge.
Certification & Traceability
Serial Number Printed on Dial.
Certificate of Conformity traceable to National Standards is supplied
Safety All units are manufactured to comply with EN837-1, S3 Specification and other regulatory standards including PED.



CFN Options

Anti Tamper
Designed to prevent disassembly
Extended Neck
For use in elevated temperatures up to 300 ºC we can dissipate the effect of heat from the Pressure Gauge by inserting an extended neck between the CFN and the pressure gauge.
Remote Mounting
St/steel capillary can be fitted between gauge and seal to protect instrument from heat or vibration
Fitting Transmitters
We have a range of standard and 'Smart' Transmitters that can be used in combination with the CFN or we can fit customers own free issue transmitters to most diaphragm seal units
Accessories
Valves and Adaptors A full range of Needle and Ball Valves to fit the CFN - See separate Datasheets.

CFN Specification Sheet Download

To view all the information on the Budenberg CFN you can download the data sheet here

DOWNLOAD PDF
