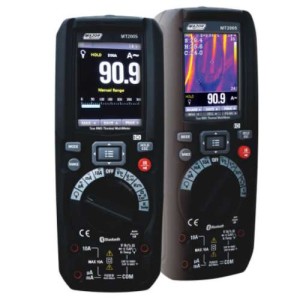

1000V AC/DC True RMS Thermal Multimeter

Brand: Major TECH
Product Code: ELMT2005

Price: $1,996.50
Ex Tax: $1,815.00

Available Options

* Intrinsically Safe:
- +

The Major TECH MT2005 Professional True RMS Industrial Digital Multimeter with a built-in 120 x 120 Pixel Thermal Imager and TFT colour LCD display, provides fast A/D converting sampling time, with high accuracy. It is a fast and easy solution to find and solve problems with production equipment, providing Bluetooth BLE technology.

It is a safe instrument with double moulded rubber housing and has an IP65 waterproof rating.

Features of the MT2005 1000V AC/DC True RMS Thermal Multimeter

  • CAT IV 600V and CAT III 1000V
  • 6000 count 2.8” TFT Colour LCD display
  • Built-in Thermal imager with MIN/MAX
  • 50Hz fast Thermal image frame rate
  • DC voltage 1000V and AC Voltage 1000V
  • AC, AC+DC TRMS Voltage 1000V
  • DC Current 10A
  • AC Current 10A
  • Resistance 60Mꭥ
  • Capacity 6mF
  • Frequency 10MHz
  • Duty Cycle 95%
  • K-Type Temperature Range: -40 to 600˚C
  • Thermal Temperature Range: -20°C to 260°C
  • Flexible Coil AC Current 3000A
  • Diode Test and Continuity

Specifications of the MT2005 1000V AC/DC True RMS Thermal Multimeter

Multimeter Funcion

 Multimeter Function  Range  Resolution Accuracy
 DC voltage 0.1mV – 1000V 0.1mV ± (0.09% + 5 Digits)
 AC voltage 0.001V – 1000V 0.1mV ± (0.8% + 5 Digits)
 AC + DC TRMS voltage 0.001V – 1000V 0.001V ± (2.4% + 20 Digits)
 DC Current 0.1μA – 10A 0.1μA ± (0.9% + 5 Digits)
 AC Current 0.1μA – 10A 0.1μA ± (01.2% + 5 Digits)
 Flexi Coil AC Current 0.01A – 3000A 0.01A ± (0.8% + 5 Digits)
 Duty Cycle 5.0% to 95.0% 0,001 ± (1.2% + 2 Digits)
 Resistance 600.0Ω – 60MΩ 0.1? ± (0.5% + 5 Digits)
 Frequency 0.01Hz – 10MHz 0.01Hz ± (0.09% + 5 Digits)
 Capacitance 0.01mF – 6000μF 0.01Hz ± (1.2% + 8 Digits)
 Temperature -40 – 600°C 0.1°C ±(1.5% +3°C)
 Continuity Yes
 Diode test Yes
 True RMS Measurements AC, AC+DC
 AC Bandwidth 50Hz to 100KHz
 Digital Display 6000 count 2,8″ TFT
 Bargraph Yes
 Enclosure Double injection IP65
 Bluetooth BLE 4.0
 Records events and Trends Yes
 Data logging Yes
 Warranty 2 Years
 Safety Rating IEC61010-1 CAT III 1000V / IEC61010-1 CAT IV 600V / IP65 Water Resistant Dustproof




Thermal Imaging Functions

 Thermal Measurement Range Accuracy
 Temperature -20°C – 260°C ±(1.5% +3°C)




 Imaging and Optical Data
 Field of View 21° x 21°/0.5m
 Spatial resolution (IFOV) 4.53mrad
 Thermal sensitivity/NETD <0.1°C @ +30°C/100mK
 Image Range 50Hz
 Focus mode Focus free
 Zoom 1 x 32 x continuous, digital zoom
 Focal Length 7.5mm
 Focal Plane Array (FPA) / Spectral range uncooled microbolometer / 8-14μm
 IR Resolution 120 x 120 pixels




 Image Presentation
 Display 2.8″ LCD, 240 x 320 pixels
 Image Modes IR Image, Visual image
 Colour Palettes Iron, rainbow, rainbow HC, grey, grey inverted




 Measurement analysis
 Spot Centre spot
 Video Storage Mode Hot or cold markers
 Image Storage Mode Variable 0.01 to 0.99
 Measurement corrections Emissivity, reflected temperature




 Data Communications Interfaces
 Interfaces Bluetooth BLE




Accessories for the MT2005 1000V AC/DC True RMS Thermal Multimeter

  • CAT IV 600V and CAT III 1000V
  • 6000 count 2.8” TFT Colour LCD display
  • Built-in Thermal imager with MIN/MAX
  • 50Hz fast Thermal image frame rate
  • DC voltage 1000V and AC Voltage 1000V
  • AC, AC+DC TRMS Voltage 1000V
  • DC Current 10A
  • AC Current 10A
  • Resistance 60Mꭥ
  • Capacity 6mF
  • Frequency 10MHz
  • Duty Cycle 95%
  • K-Type Temperature Range: -40 to 600˚C
  • Thermal Temperature Range: -20°C to 260°C
  • Flexible Coil AC Current 3000A
  • Diode Test and Continuity
