Socket ELCB Tester

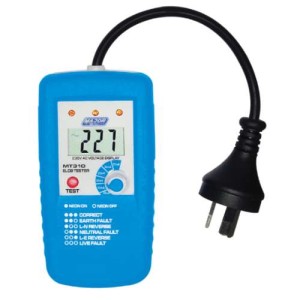

The Major TECH MT310 Earth Leakage Tester is a compact, lightweight and easy to use socket, polarity and earth leakage tester that tests 3-wire 216V AC – 264V AC circuits and Earth Leakage Circuit Breakers. A unique feature is the AC Voltage indication on the LCD display. It also features a milli-amp (mA) trip setting with a separate test button. The unit can be set from 10mA, used for testing saturation and to eliminate nuisance tripping, to 35mA. The bright neon indication assists the user in confirming the wiring status of the circuit under test.

Simply plug the MT310 into a wall socket and the results are clearly displayed. For additional safety, the MT310 is rated at CAT IV 300V and CAT III 600V.

Features of the MT310 Socket ELCB Tester

• Compact, lightweight and easy to use
• Correct Wiring Indication with neon lights
• Operates on 216V AC – 264V AC systems
• AC Voltage measurement on LCD display
• Fixed current settings from 10mA to 35mA
• Separate test button
• Double injection rubber housing

Specifications of the MT310 Socket ELCB Tester

Accessories for the MT310 Socket ELCB Tester

Circuit Breaker Finder

• Hard Carrying Case
• Test Leads
• Temperature Probe
• K-Type Adaptor
• Instruction Manual
• Rechargeable Li-ion Batteries
• Battery Charger
